Main Features:
High-Speed Extruder
oSingle-screw design with precision temperature control
Output capacity: 200–1,500 kg/h (adjustable based on material and pipe size)
Compatible with PE100, PE80, and recycled polyethylene materials

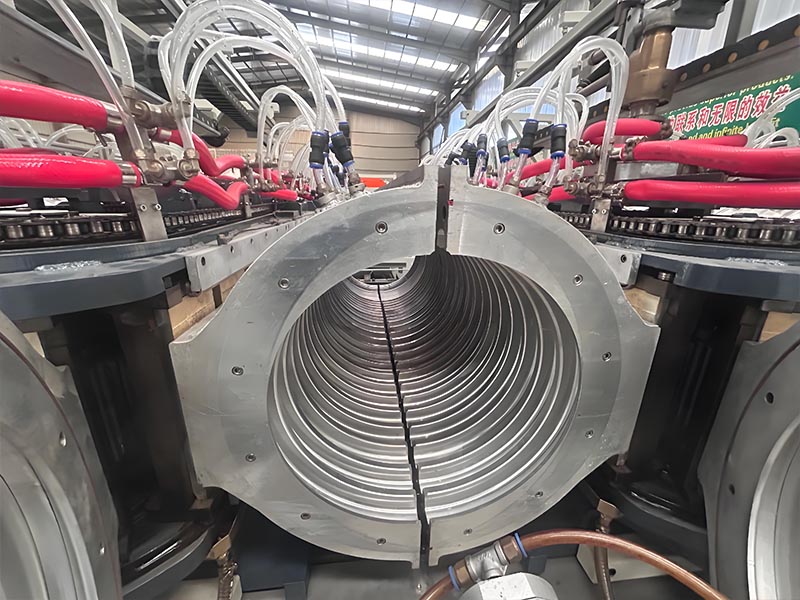

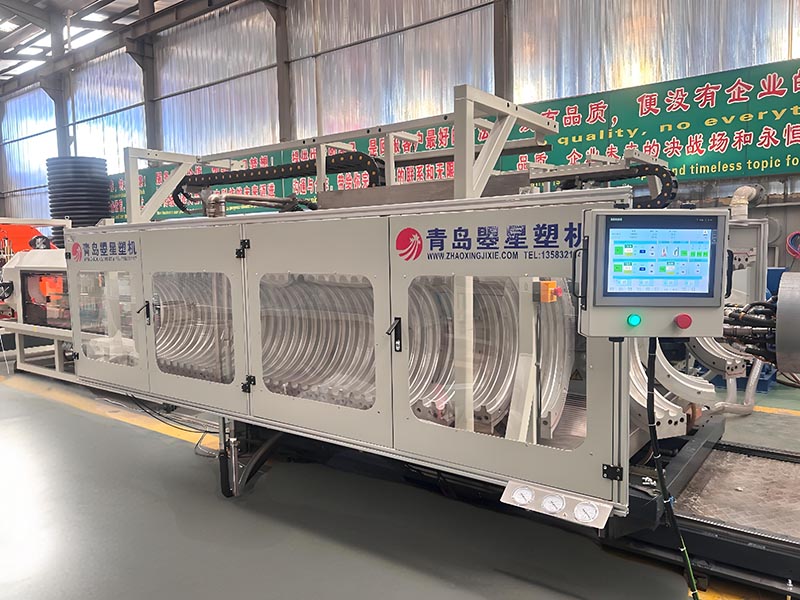

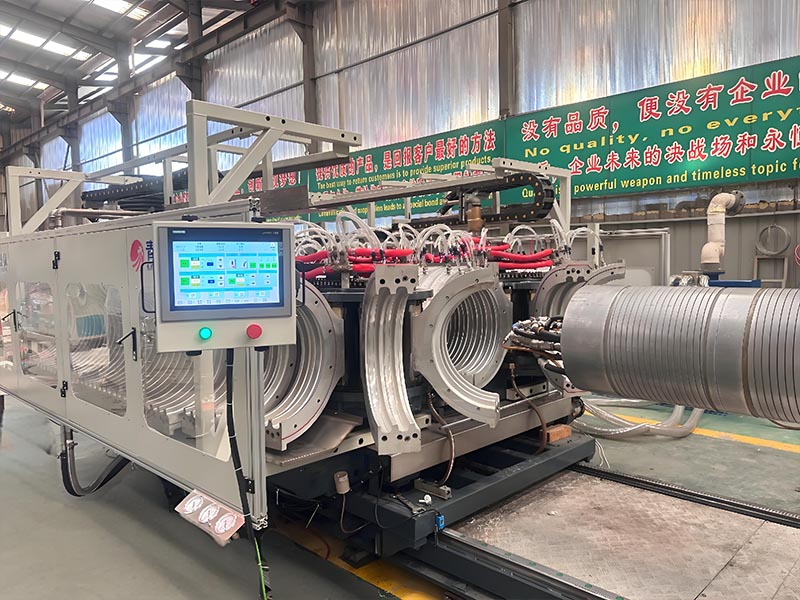

Corrugation Molding Unit
Modular vacuum calibration system with servo-driven forming molds
Automatic diameter adjustment for rapid product changeovers
Cooling System
oMulti-stage water-cooling tanks with closed-loop temperature management
Corrosion-resistant stainless steel construction

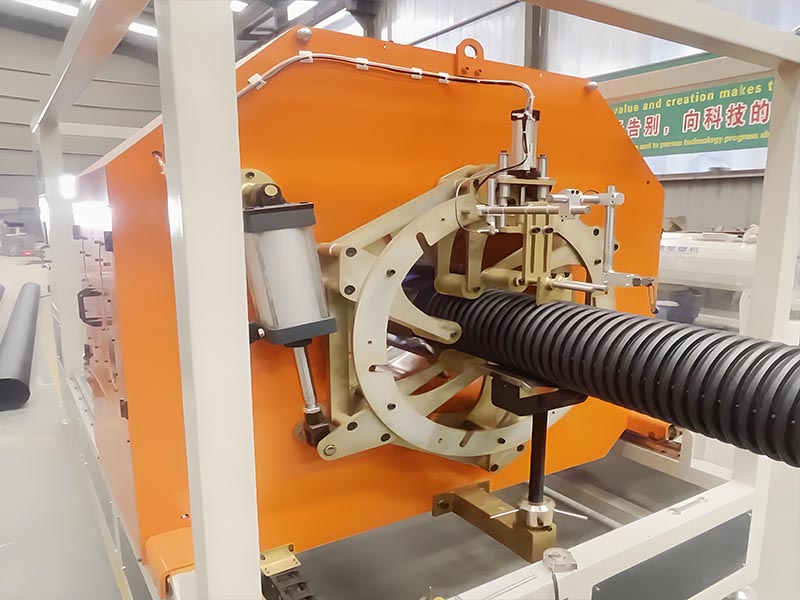

Traction & Cutting Unit
oServo-controlled caterpillar traction with ±0.5mm positional accuracy
Programmable length cutting (rotary saw or flying knife options)
Automated Control System
PLC + HMI interface for real-time monitoring of speed, pressure, and temperature
Data logging and fault diagnosis capabilities
- Tel:+86135-8321-1497
- Email:zhaoxingjixie121@gmail.com
Please fill out the form below and we will get back to you as soon as possible.
- Call:+86135-8321-1497
- Mail:zhaoxingjixie121@gmail.com
Products

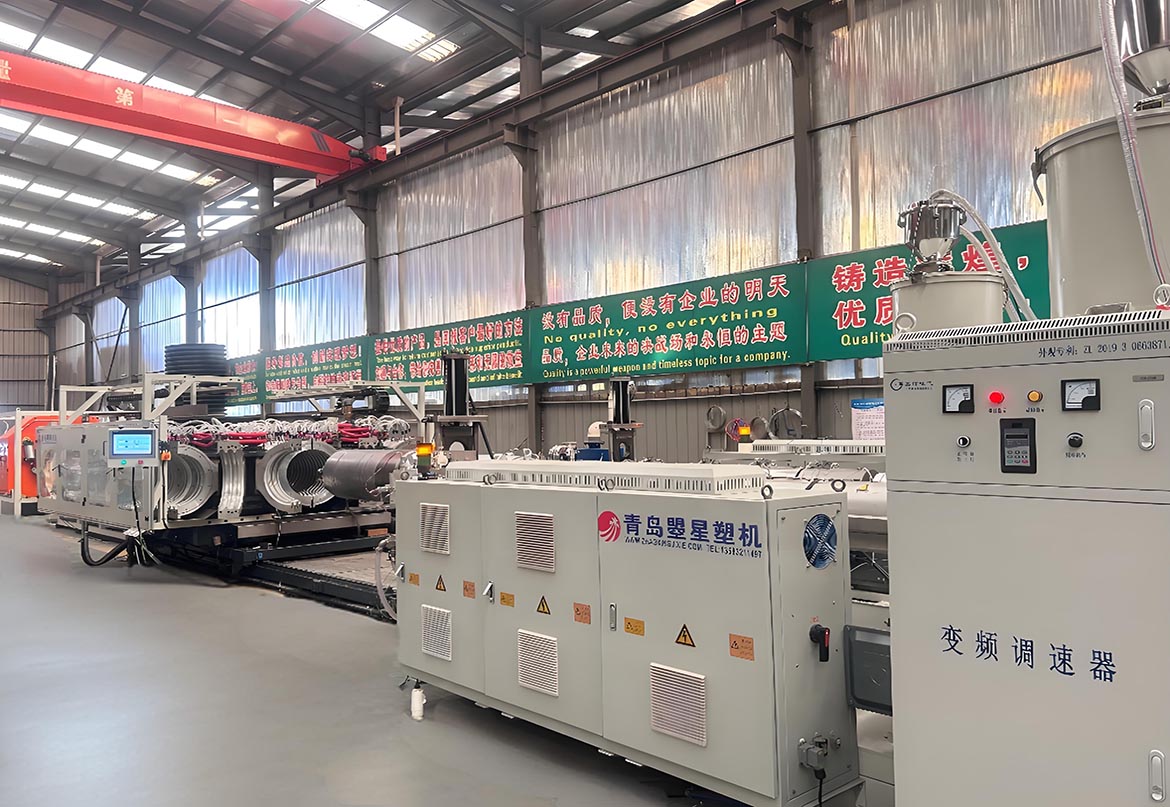

Double-wall Corrugated Pipe Production Line
Our fully automated Double-wall corrugated pipe production line is designed for high-efficiency manufacturing of PE,PVC,PP double-wall corrugated pipes. The system integrates advanced extrusion, molding, and quality control technologies to ensure consistent output for drainage, cable protection, and industrial piping applications.
-
Product Introduction
-

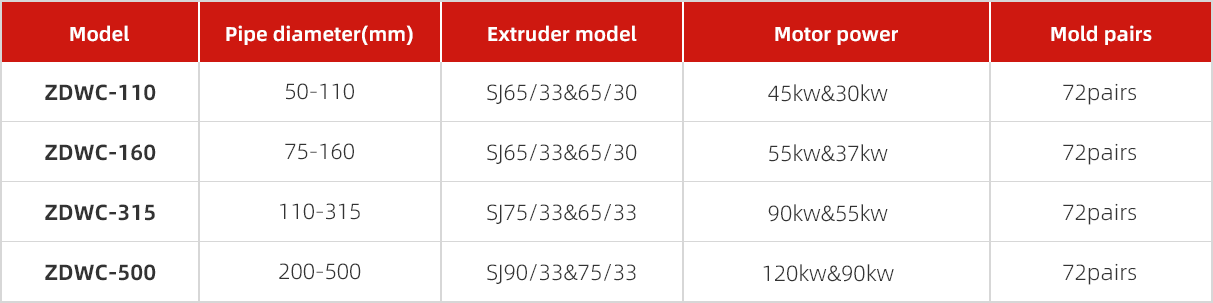

Technical parameters
-
